Spritzgießmaschine
Arburg 420C 1300-350
Sold
Year of production: 2001
ARBURG 420 C 1300-350 – used injection moulding machine, built in 2001, with Selogica control, 1,300 kN clamping force and a 35 mm screw.
Price on request
Contact us for an individual offer
Technical Details
Technical data
- Manufacturer: ARBURG
- Model: 420 C 1300-350
- Year of manufacture: 2001
- Serial number: 18417

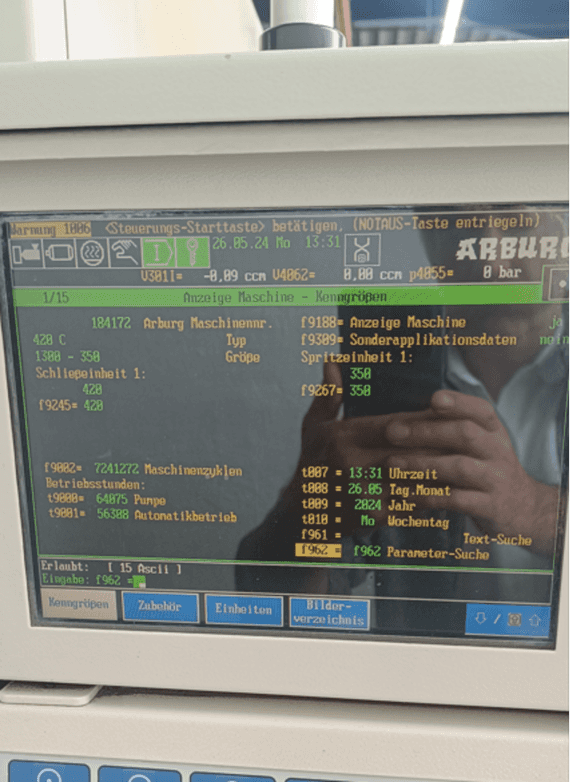

- Operating hours: 56,380 h

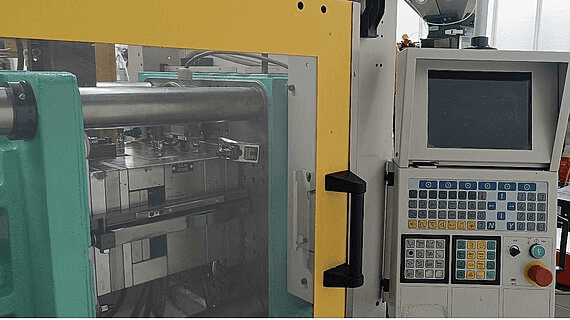

- Control: Selogica
- Screw diameter: 35 mm
- Shot weight: 127 g
- Injection pressure: 2,500 bar
- Injection volume: 139 cm³
- Clamping force: 1,300 kN / 130 t
- Tie-bar spacing: 420 × 420 mm
- Platen size: 605 × 605 mm
- Mould height: 250 mm
- Maximum platen distance: 750 mm
- Ejector stroke / force: 175 mm / 40 kN
- Clamping unit: hydraulic
- Motor power: 22 kW
- Heating power: 9.4 kW
- Total power: 33.4 kW / 100 A
- Dimensions (L × W × H): 4.20 × 1.50 × 2.05 m
- Weight: 4,080 kg
- Condition according to previous owner: technically and visually very good; fully operational
Description

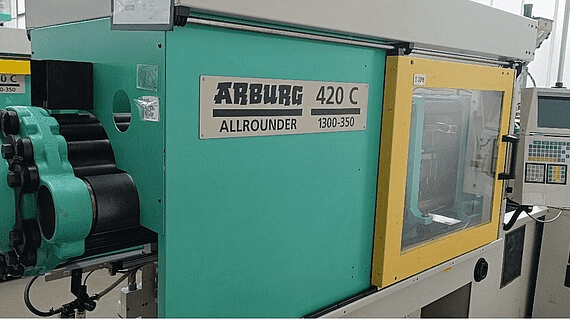

ARBURG 420 C 1300-350 – used injection moulding machine
The ARBURG 420 C 1300-350, built in 2001, is a hydraulic injection moulding machine with Selogica control. With 1,300 kN clamping force, a 35 mm screw and a shot weight of 127 g, it is suitable for application-specific tasks in plastics processing.
Please verify suitability for your mould and production process using the available documentation and during an inspection before purchase.
