Spritzgießmaschine
Arburg 320C 500-170 Golden Edition
Sold
Year of production: 2012
Used ARBURG 320 C 500-170 Golden Edition, built in 2012, with Selogica control, 500 kN clamping force and the listed equipment options.
Price on request
Contact us for an individual offer
Technical Details
Technical data
- Model: ARBURG 320 C 500-170 Golden Edition
- Year of manufacture: 2012
- Control system: Selogica
- Screw diameter: 35 mm
- Shot weight: 105 g
- Injection pressure: 1,470 bar
- Shot volume: 115 cm³
- Clamping force: 500 kN
- Tie-bar distance: 320 × 320 mm
- Platen size: 446 × 446 mm
- Mould height: 200 mm
- Maximum platen distance: 550 mm
- Ejector stroke / force: 125 mm / 30 kN
- Clamping unit: hydraulic
- Motor power: 11 kW
- Heating power: 9.4 kW
- Total connected load: 21 kW
Description

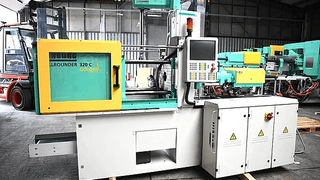

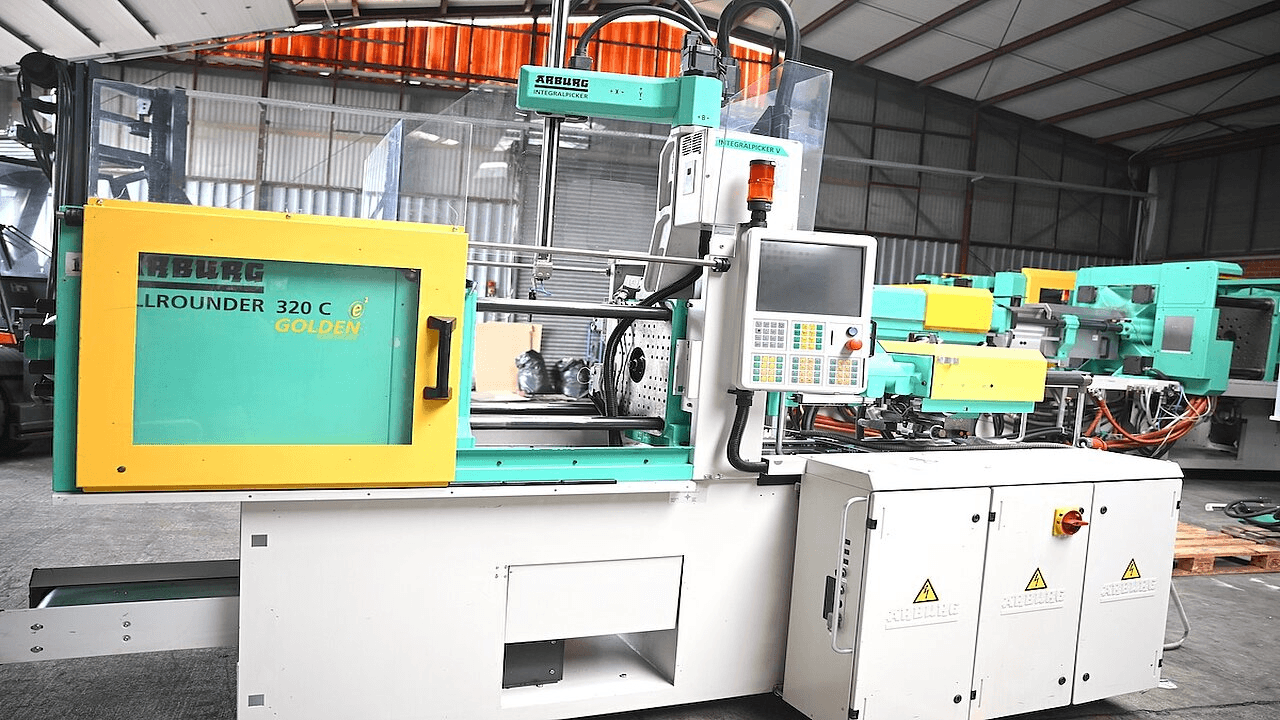

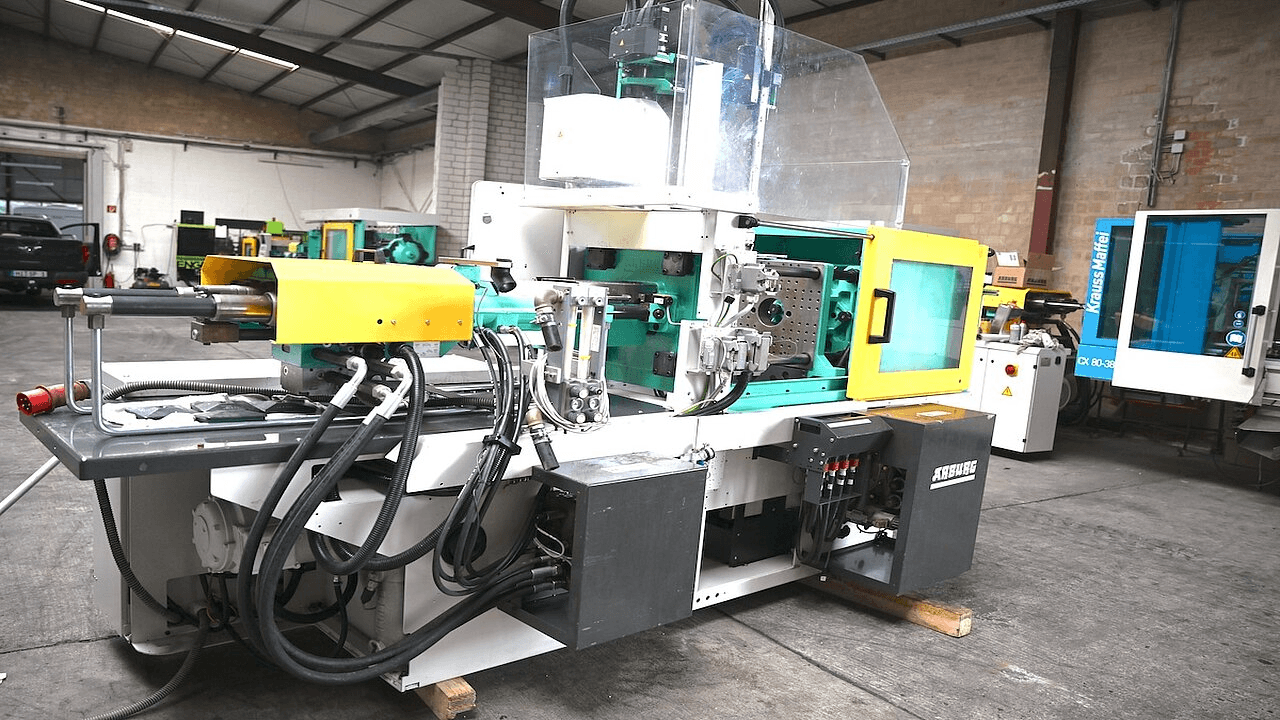

Used ARBURG 320 C Golden Edition

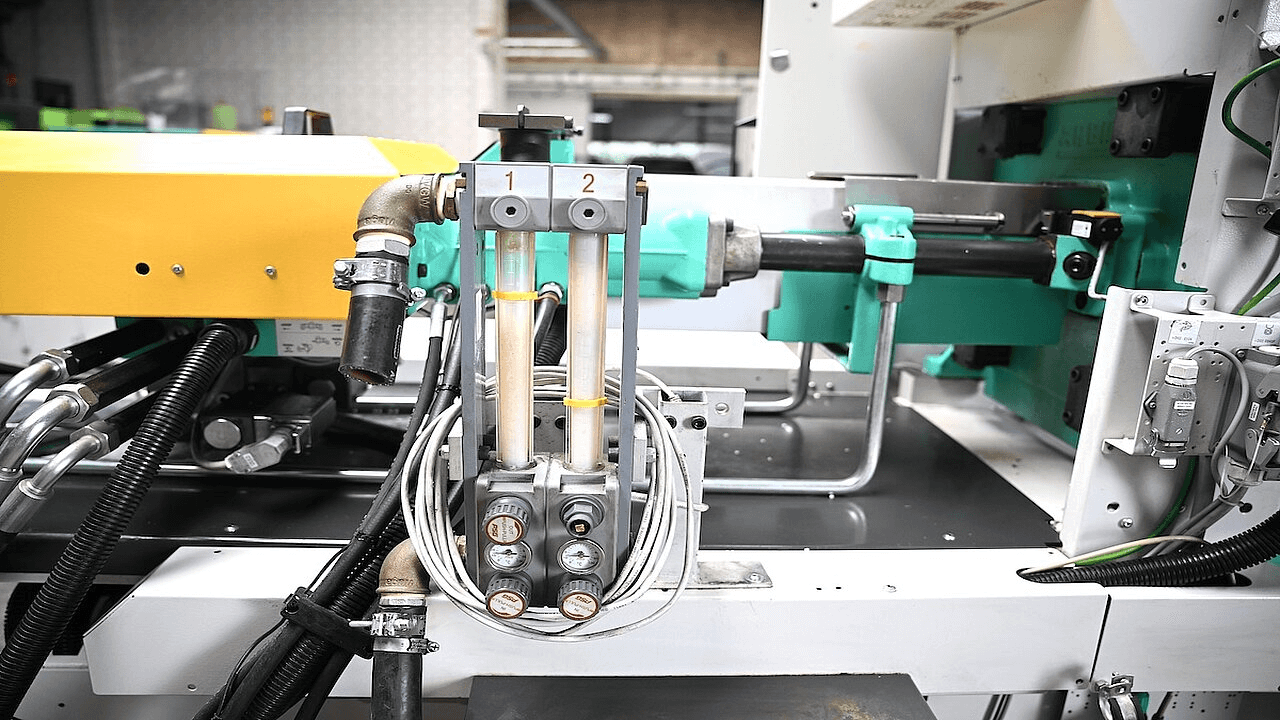

The ARBURG 320 C 500-170 Golden Edition is a used hydraulic injection moulding machine built in 2012. The available equipment data include a core puller, air blow units, an electric conveyor, interfaces for colouring, a host computer and printer, plus a Wittmann flow controller.
Please confirm the actual scope of supply, condition and availability before purchase.
